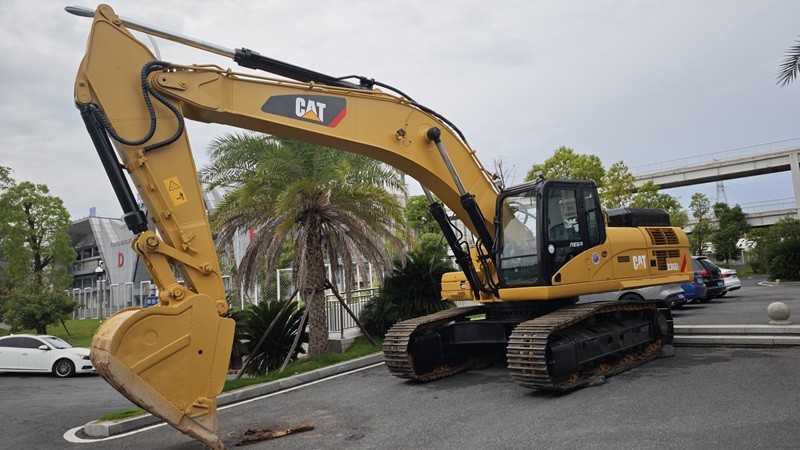

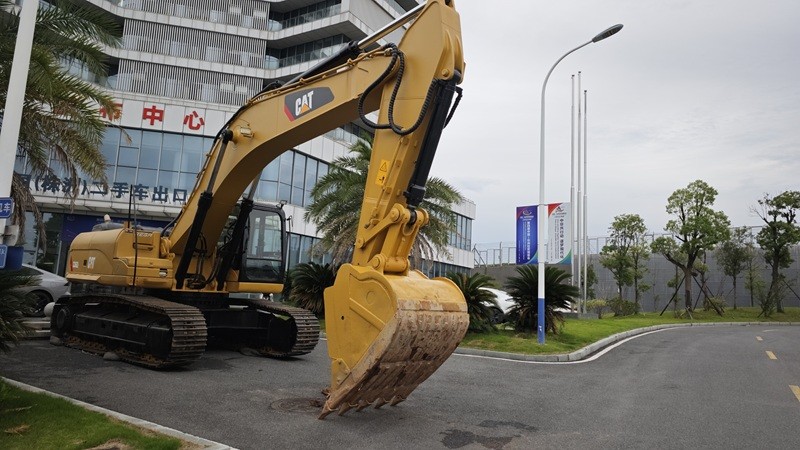

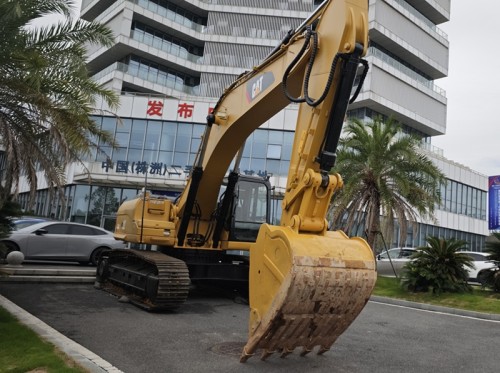

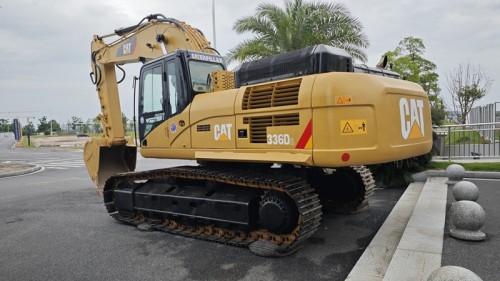

Kate excavator 336D2 China second-hand excavator export
Item specifics
- Machine working weight
- 34600kg
- Bucket Capacity
- 1.88m³
- Rotation speed
- 8.3rpm
- Walking speed
- 4.6km/h
- Gradeability
- 70%
- Maximum traction
- 300kN
- Engine Model
- Cat C9 ACERT
- Rated power
- 208kW
Review
Description
High-quality second-hand excavator, available now, on-site inspection available, complete certificates, limited quantity, please contact us~

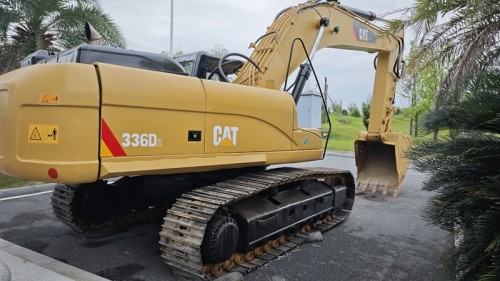

Kate 336D2 parameters
Specifications
- Machine operating weight: 34600kg
- Bucket capacity: 1.88m³
- Boom length: 6500mm
- Arm length: 2800mm
Performance
- Swing speed: 8.3rpm
- Travel speed: 4.6km/h
- Climbing ability: 70%
- Maximum traction: 300kN
Power system
- Engine model: Cat C9 ACERT
- Rated power: 208kW
- Displacement: 8.8L
- Bore × stroke: 112mm × 149mm
Hydraulic system
- Main pump maximum flow: 281L/min
- Pilot pump flow: 40L/min
- Pilot oil circuit pressure: 4MPa
- Main overflow set pressure: 35MPa
Oil capacity
- Fuel tank: 620L
- Hydraulic oil tank: 175L
- Hydraulic system: 410L
- Engine oil change volume: 41L
- Coolant: 40L
Main body dimensions
- Total length for transport: 11210mm
- Total width for transport: 3190mm
- Total height for transport: 3670mm
- Cab height: 3140mm
- Total length of crawler tracks: 4590mm
- Shoe width: 600mm
- Track gauge: 2590mm
- Minimum ground clearance: 510mm
- Counterweight ground clearance: 1220mm
- Rear end swing radius: 3490mm
Operation range
- Maximum digging radius of parking surface: 11760mm
- Maximum digging depth: 8210mm
- Maximum digging height: 10730mm
- Maximum unloading height: 7510mm
- Maximum vertical digging depth: 6290mm
