Model
SYM3311ZZX7BEV

Item specifics

Maximum speed
80km/h
Maximum permissible total mass
31000kg
wheelbase
2000+4200+1400mm
Power battery
Ningde Times 282kWh
Origin
China

Review

Description

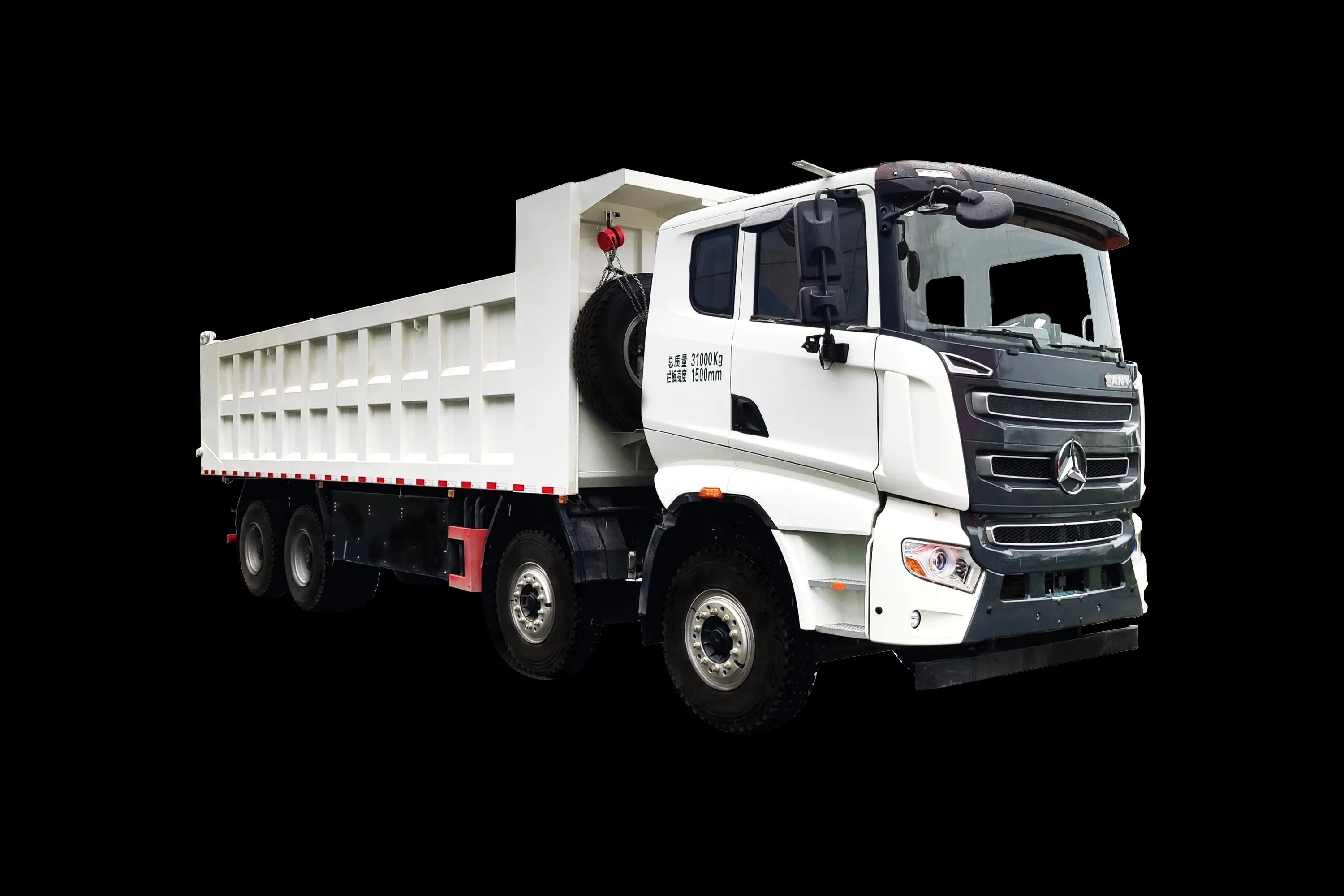

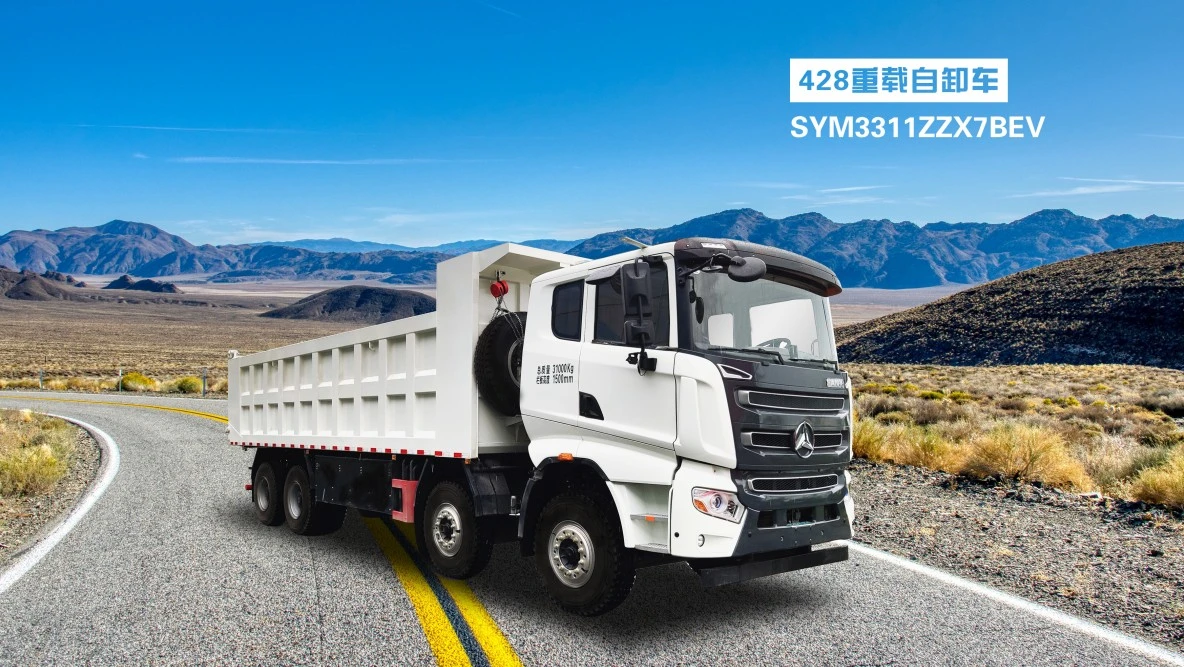

SYM3311ZZX7BEV

SYM3311ZZX7BEV heavy machinery
SYM3311ZZX7BEV Advantages Introduction

428 heavy-duty dump truck construction equipment

• Low energy consumption

 Brake energy recovery, lightweight design and other means to reduce vehicle energy consumption, lower operating costs and ensure customer benefits

• Steady climbing

The maximum power is 405kw, the maximum torque is 2400N • m, and the climbing capacity exceeds 30%

• Quick energy supplement

Double gun DC fast charging, efficient energy supplement

• Tightly sealed

The industry's first hydraulic tarpaulin (split mobile hardtop cover)+inflatable seal+skeleton three "U" shaped bucket, without spilling, leakage and residue

• Long life

Green "core" power, no emission upgrading concerns, no risk of mandatory scrapping

The protection grade of the core three electricity system is IP68, the highest level of dust prevention and waterproof, no short circuit and no leakage on the ponding and dust roads

The industry's most stringent wading test, 10000km mountain road test, 30000km enhanced road verification, fearless of complex and harsh road conditions

• Multi intelligence

The Truck Link Internet of Vehicles is equipped with streaming media online monitoring, super large central control blind area monitoring, driver fatigue warning, and vehicle driving safety is improved by 30%

• It's cool to drive and ride

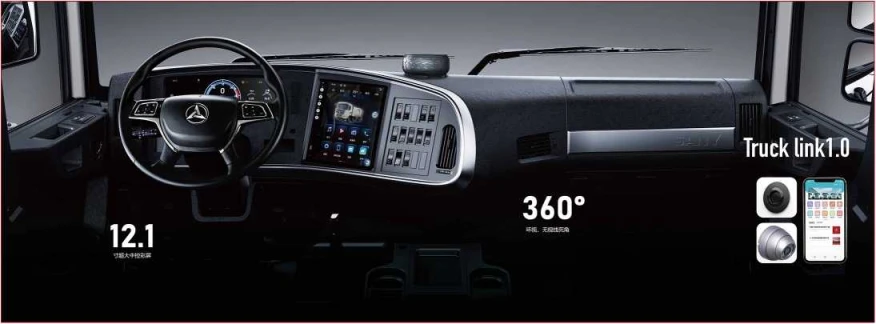

Four point suspension cab, high-end air floating seats, super wide sleeper, multi-function steering wheel, full LCD instrument, 12.1 inch super large central control screen, LED headlights intelligent opening, creating a "digital cockpit" for you

• Strong service

The industry's first ECC enterprise control center, the industry's first 6S store model, quantitative digital commitment, and R&D service team will accompany you throughout your life

Specifications
model
color
curb weight
22500kg
Overall dimensions (L * W * H)
11100×2540×3580mm
wheelbase
2000+4200+1400mm
Minimum turning diameter
24m
Maximum speed
80km/h
Maximum gradient
30%
Container size
(8000/7600/7500/7200) x (2400/2350/2300) x (1500/1mm
Maximum permissible total mass
31000kg
Driving range (comprehensive conditions)
80-120km
Power battery
Power battery type
Lithium iron phosphate/water-cooled
Total storage capacity of energy storage device
Ningde Times 282kWh
 Drive motor
Motor type
Permanent magnet synchronization
Rated power/speed/torque
270/2242/1150kW/r/min/N·m
Peak power/speed/torque
405/3000/2400kW/r/min/N·m
Chassis configuration
transmission case
AMT manual integration
the front axle
Hande/Shenli
Middle rear axle
Hande/Shenli double bridge
tyre
12.00R20
braking system
EBS
Energy supplement configuration
Energy supplement mode
Double gun DC fast charging
Energy supplement time
≤60min
SYM3311ZZX7BEV heavy equipment details
SYM3311ZZX7BEV heavy equipment details
SYM3311ZZX7BEV heavy equipment pilothouse
SYM3311ZZX7BEV heavy equipment details
SYM3311ZZX7BEV heavy equipment details
SYM3311ZZX7BEV heavy equipment details
SYM3311ZZX7BEV heavy equipment details
