Model
XCMG XR630/730 grain combine harvester

Item specifics

Overall weight kg
4280 (service quality)
Grain bin volume m ³
1.6
Engine power
125hp、120hp
Fuel tank volume L
170+45
Origin
China

Review

Description

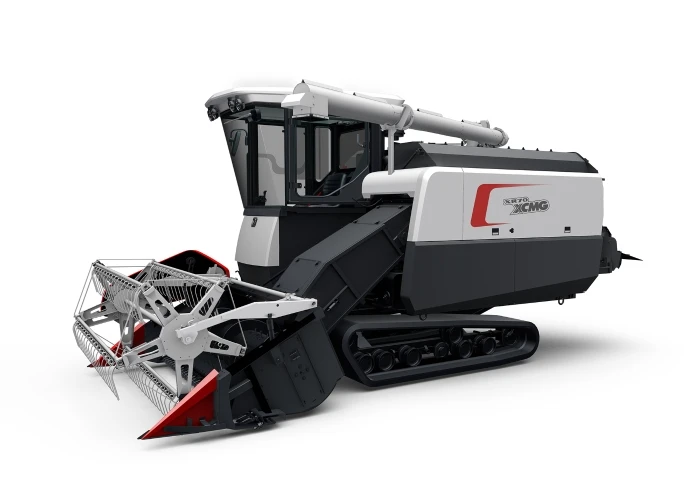

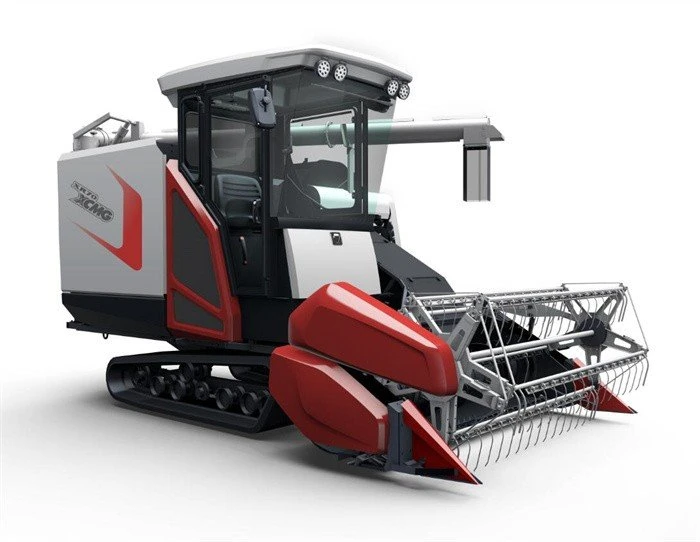

XCMG XR630/730 grain combine harvester
XCMG XR630/730 grain combine harvester
XCMG XR630/730 grain combine harvester Advantages Introduction

01. Higher efficiency


Reinforced header screw, with widened bridge, feeding faster


Optimized throat design, overall molding, less resistance, more smooth feeding.


Extended drum, widened concave screen, larger cleaning area; High performance fan, high exciting force vibrating screen, higher cleaning efficiency.


Real time monitoring of power reserve, timely alarm and early intervention


02. Lower loss


The right cutter and the right reel are used to eliminate the header loss caused by grass entanglement

Large capacity header, not easy to return grass, and avoid secondary loss; Long header design and lower reel layout are conducive to harvesting lodging crops with small loss

The lengthened drum and the larger concave screen have good threshing effect and very low grass discharge loss.


03. Easier to control


The steering adopts the load sensitive proportion technology, which clearly distinguishes the small turn and the big turn. The action is delicate and the impact is small, and the turning efficiency is high;

Reasonable center of gravity design, good vehicle stability; Professional man-machine design, wide vision, convenient and comfortable operation.


04. Professional design and craftsmanship


High precision forming, professional material strengthening, stress control of core components, and quenching of high-quality components

High standard assembly and debugging, digital testing, professional coating system, strict control of nearly 1000 key points, and high performance complete machine

High reliable design concept, strict design standards, advanced design means and strict verification system create high-level design genes



Specifications
Product code
XR730
XR630
Product model
4LZ-7.0A (cab)
4LZ-7.0B (awning)
4LZ-6.0B (cab)
4LZ-6.0C (awning)
engine Engine brand
Yuchai/Quanchai
Yuchai/Quanchai
Yuchai/Quanchai
Yuchai/Quanchai
engine Power/kW (hp)
125hp、120hp
125hp、120hp
115hp
115hp
engine Fuel tank volume L
170+45
170+45
170+45
170+45
Overall dimensions (length × wide × Height) mm
5800×2650×2900(with chopper)
5800×2650×2750 (with chopper)
5800×2650×2900 (with chopper)
5800×2600×2750(with chopper)
Overall weight kg
4280 (service quality)
4080 (service quality)
4050 (service quality)
3850 (service quality)
Feeding amount kg/s
7
7
6
6
Header width mm
2300
2300
2200
2200
Threshing drum type
Pinion axial flow type
Pinion axial flow type
Pinion axial flow type
Pinion axial flow type
Threshing drum size (outside diameter × Length) mm
Φ620×2210
Φ620×2210
Φ620×2210
Φ620×2210
Vibrating screen type
Upper screen: two-stage corrugated plate+two sets of pointer screens+two sections of fish scale screen+lower screen of tail screen: mesh screen
Upper screen: two-stage corrugated plate+two sets of pointer screens+two sections of fish scale screen+lower screen of tail screen: mesh screen
Upper screen: two-stage corrugated plate+two sets of pointer screens+two sections of fish scale screen+lower screen of tail screen: mesh screen
Upper screen: two-stage corrugated plate+two sets of pointer screens+two sections of fish scale screen+lower screen of tail screen: mesh screen
Track pitch × Number of nodes × Width
90 mm × Section 56 × 500/550mm
90 mm × Section 56 × 500/550mm
90 mm × Section 53/56 × 500/550mm
90 mm × Section 53/56 × 500/550mm
Track gauge mm
1250
1250
1250
1250
transmission case
TM3088
TM3088
TM3088
TM3088
Minimum ground clearance mm
310
310
310
310
Grain bin volume m ³
1.6
1.6
1.5
1.5
